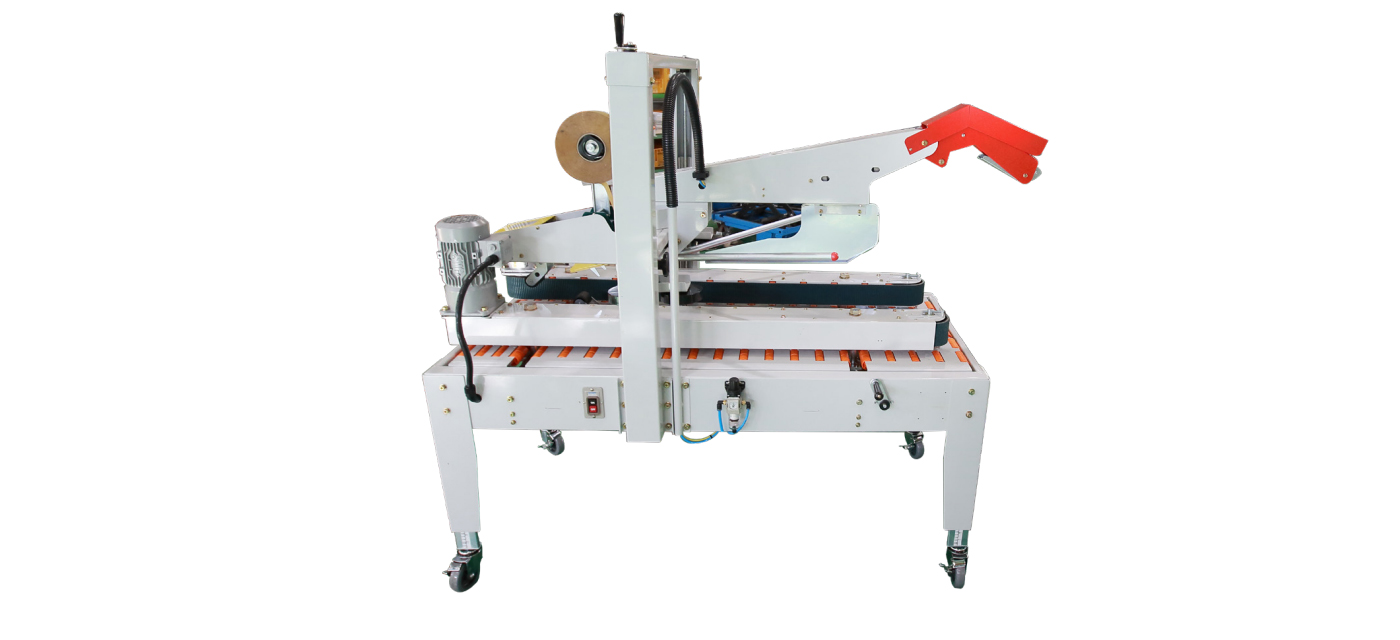

Automatic sealing machine (automatic folding type taping machine)
페이지 정보
본문
Product Specification
| Features | Tapping machine that automatically taps and seals the top of A-type (flap) boxes | ||
|---|---|---|---|
| Easy to work with a large number of boxes of the same size in succession | Auto grounding by ARM method | Size adjustment function | Easy to replace tape heads |
| Model | SWTM-120N |
|---|---|
| Machine Dimensions | (L)1520, (W)890, (H)1780, (FL)660~900 |
| Packaging Specifications | (L)200~600, (W)160~500, (H)120~500 |
| Sealing method | OPP TAPE 50mm |
| How it works | SIDE BELT TYPE |
| Specification Conversion Method | HANDLE |
| Production rate | MAX. 12 Box/Minute |
| Machine Weight | 210Kg |
| Pneumatic specifications | MAX. 490kPa (5kgf/cm²) |
| Power specifications | 220/380V, 3Phase, 60Hz, MOTOR 0.2kW X 2 220V, 1Phase, 60Hz, MOTOR 0.2kW X 2 (OPTION) |
